cat7 sftp network cable 23 awg 4 pair LSZH 305m

FAHAD CABLES cat7 sftp network cable 23 awg 4 pair LSZH 305m

Discover the advanced features of Cat7 S/FTP network cables, designed for high-speed data transmission and minimal interference. Produced by Fahad Cables Industry in Saudi Arabia, these cables offer impressive specifications, including 23 AWG design and the ability to achieve speeds up to 10 Gbps over 100 meters. Their shielding minimizes electromagnetic interference (EMI), ensuring optimal signal integrity. Additionally, made from Low Smoke Zero Halogen (LSZH) materials, these cables are safer for indoor use. Choose Cat7 S/FTP cables for robust performance in both residential and commercial settings, providing a reliable connection and durability for high data usage environments.cat7 sftp network cable 23 awg 4 pair LSZH 305m

Fahad Cables Industries FZE is one of the most Reputable Manufacturers of Network cables in the Middle East. Providing a Happier, Richer Future through Providing Solutions for copper range cat3,cat5e,cat6,cat6a,cat7 and cat8 networking cables Coaxial Cables Automation Cables Industrial and Building Automation Cables data patch cords fiber patch cord pigtails.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-600 MHz
Loop Resistance: 25
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 534 + 36/vf. nS/100m max @ 1-600 MHz
Insulation Resistance: 45 nS/100m max @ 1-600 MHz
Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-600 MHz

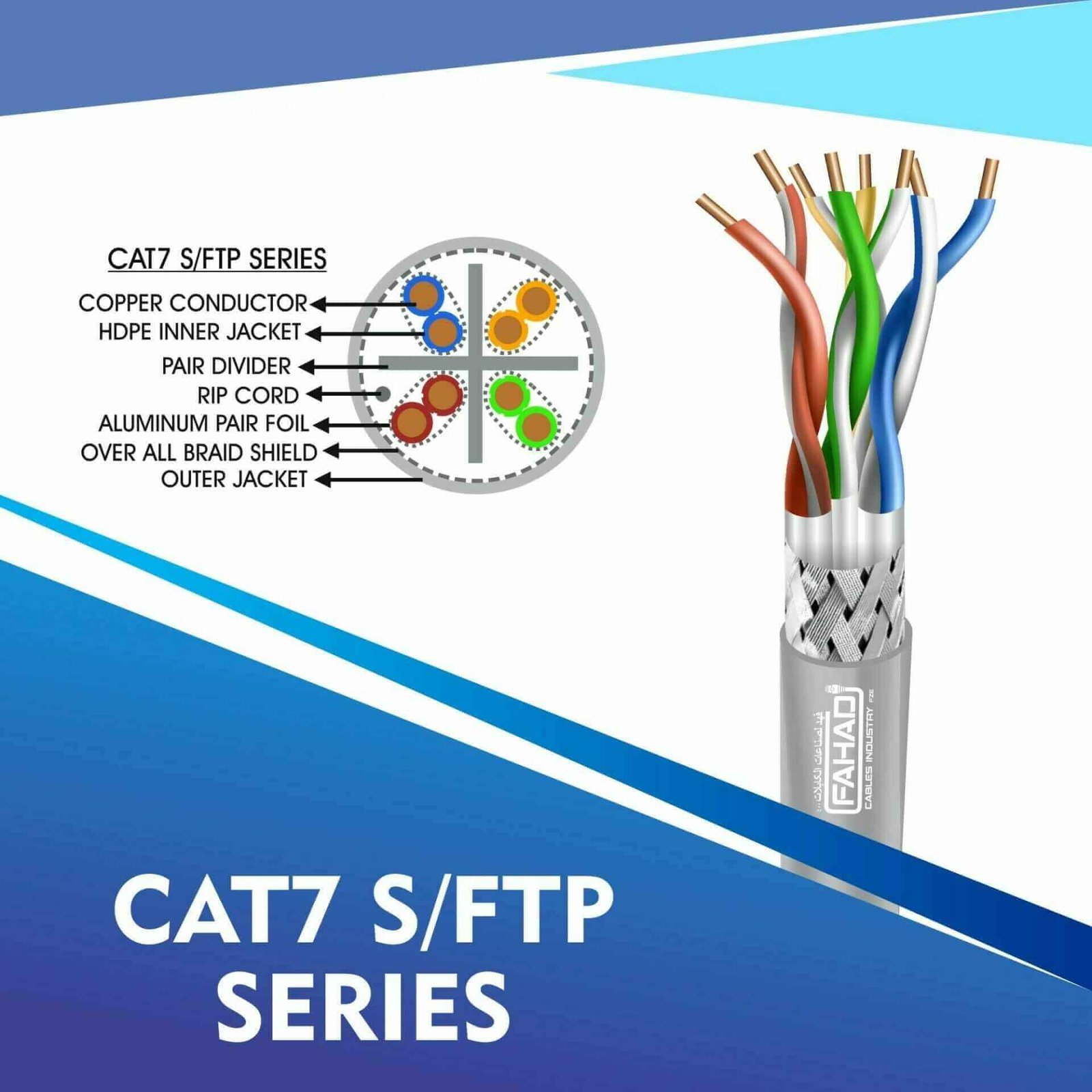

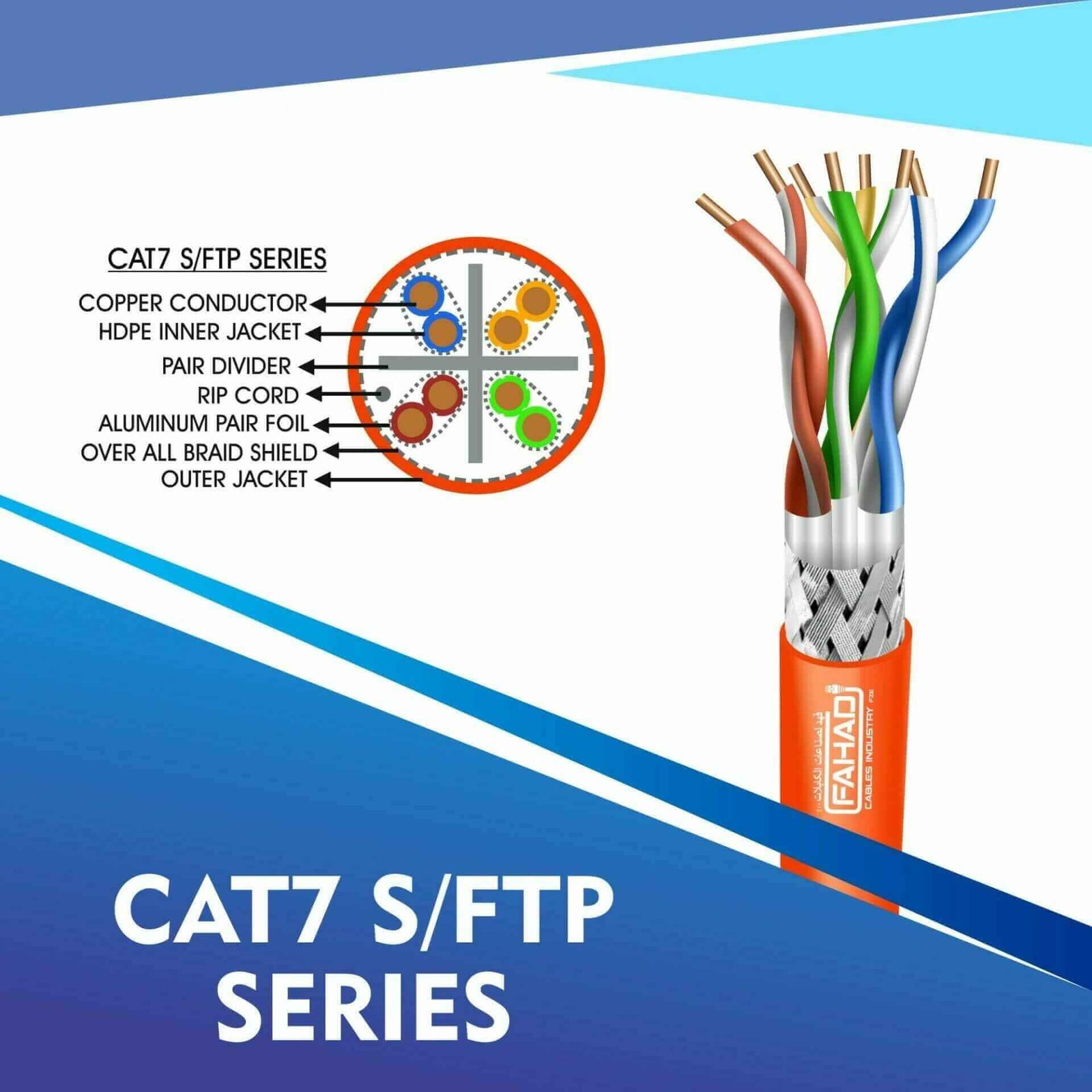

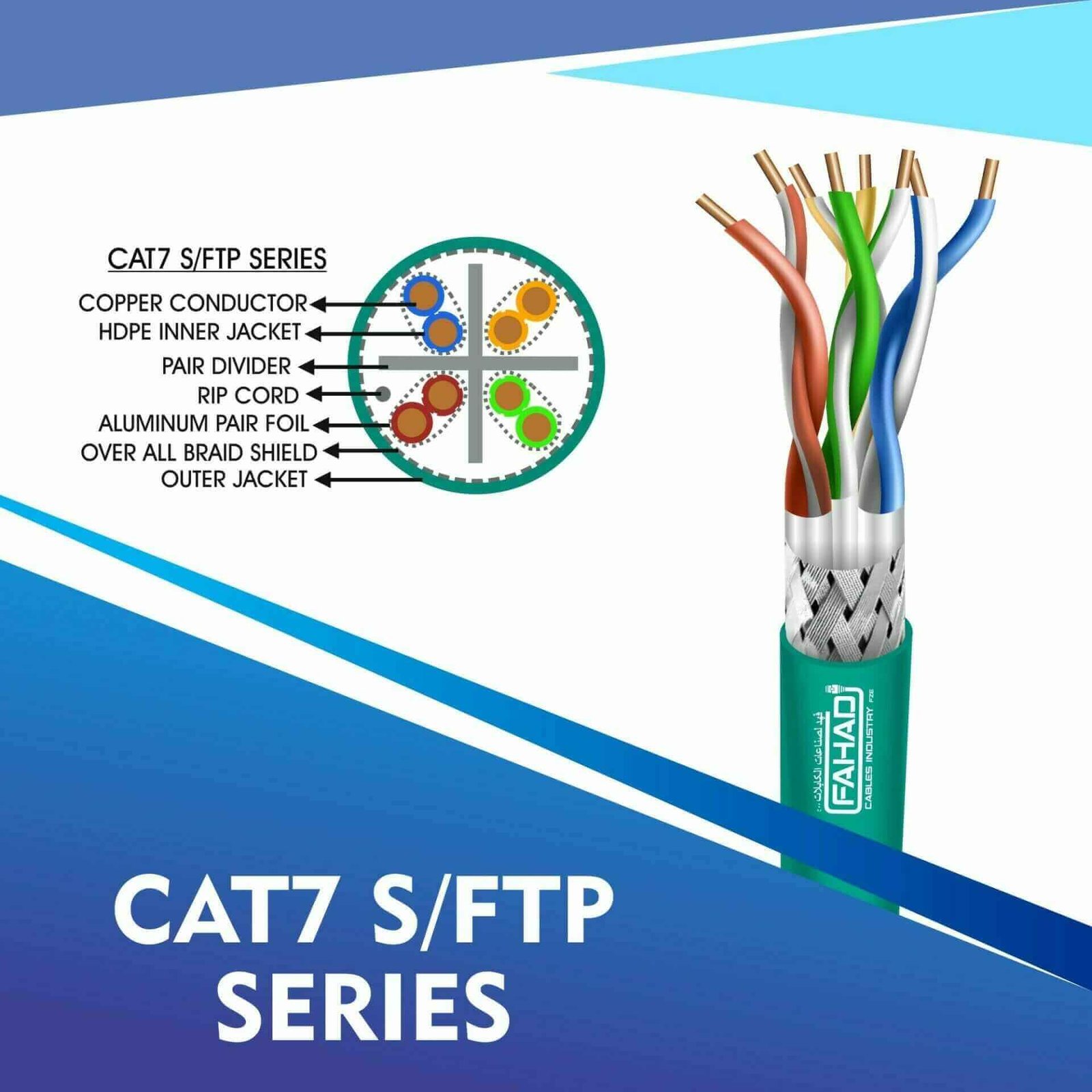

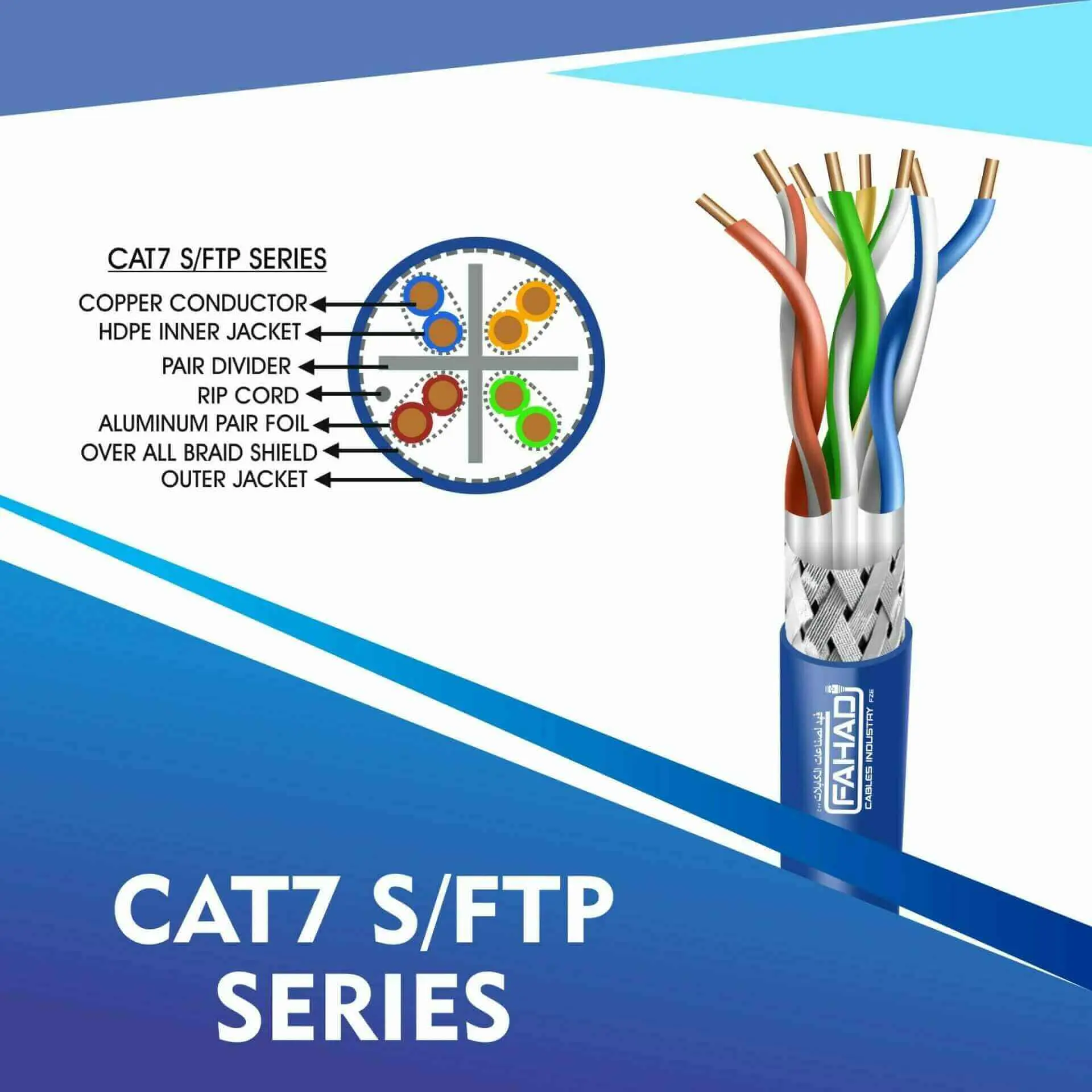

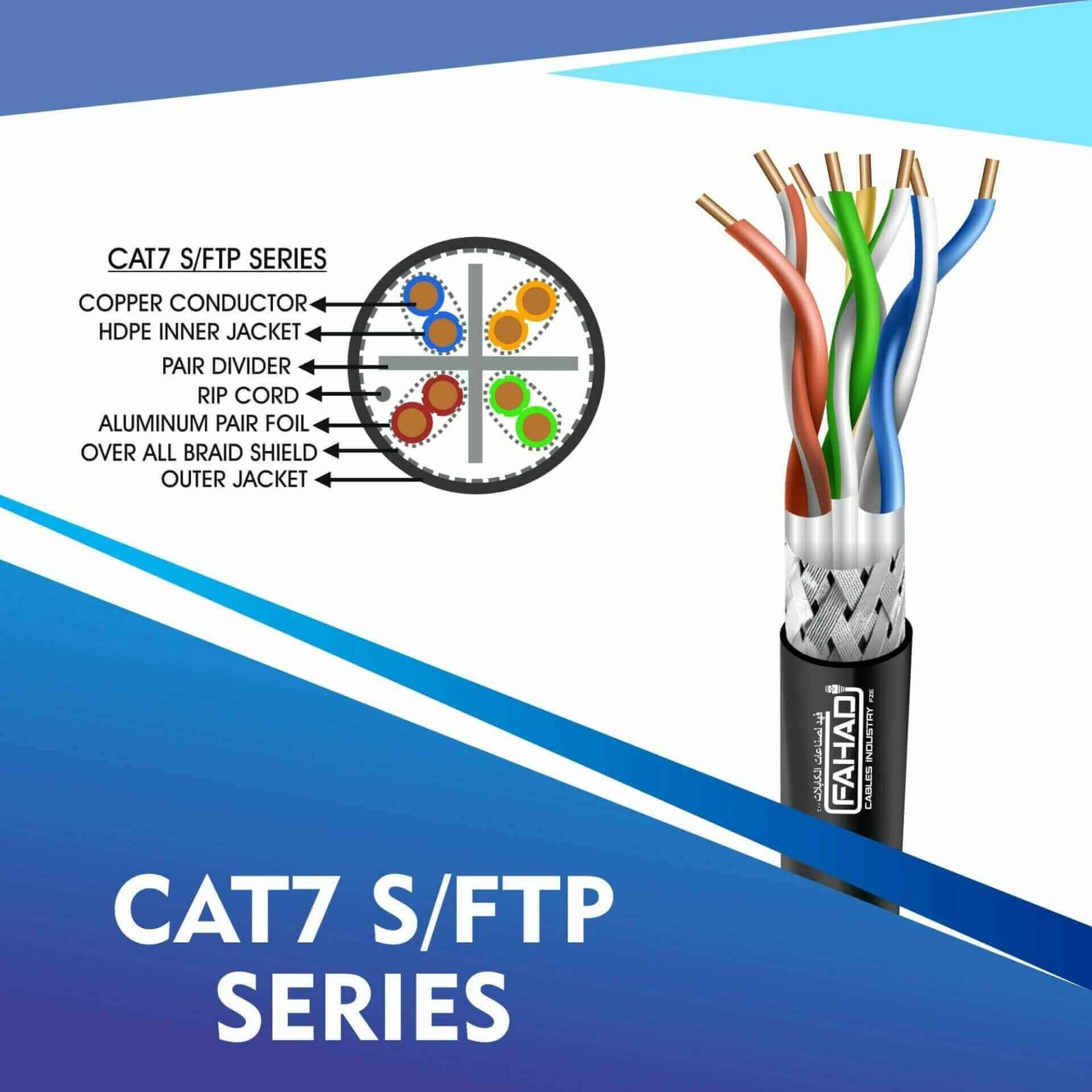

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: Braided Shield + aluminum Foil Polyester Tape
Drain wire: copper conductor
Outer Jacket: PVC/LSZH
Standard Jacket Color: Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow/Aqua
Standard Surface Marking: Includes FCI P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8-12 xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: 23AWG 4PAIR CAT7 S/FTP CABLE PVC 305M
