cat8 network cable 23awg 4 Twisted pair S-FTP 305m

Fahad Cable Cat8 Network Cable 23awg twisted Pair s-ftp LSZH 305m

The Fahad Cable Cat8 Network Cable is a high-performance networking solution designed for demanding data transmission needs. Featuring 23AWG twisted pair conductors with S-FTP (Shielded Foiled Twisted Pair) construction, this cable ensures superior protection against electromagnetic interference and crosstalk. With a robust LSZH (Low Smoke Zero Halogen) jacket and a generous 305-meter length, it is ideal for professional installations requiring reliable, high-speed connectivity and enhanced safety in sensitive environments.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-700 MHz
Loop Resistance: 25
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 534 + 36/vf. nS/100m max @ 1-700 MHz
Insulation Resistance: 45 nS/100m max @ 1-700 MHz
Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-700 MHz

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: barre copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown

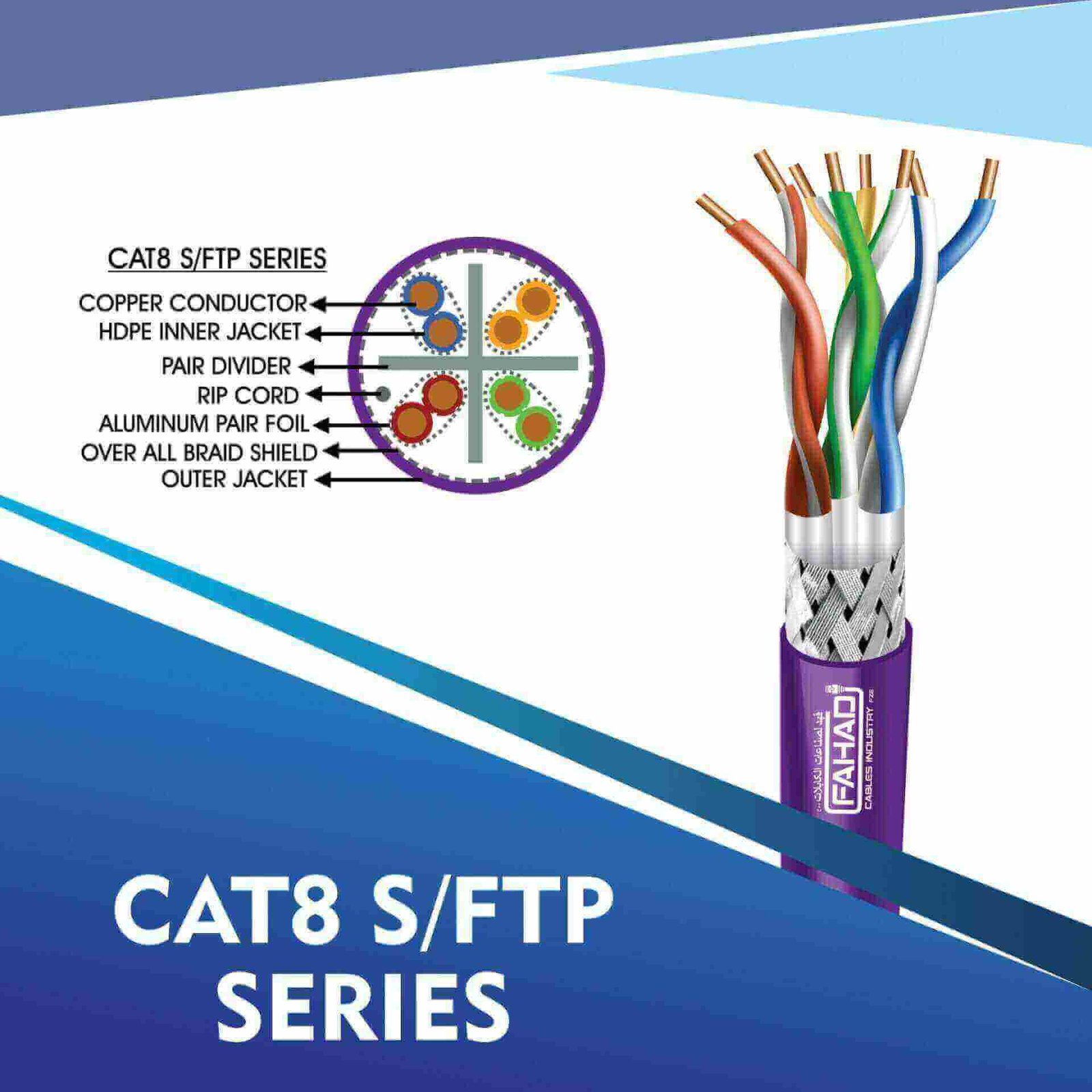

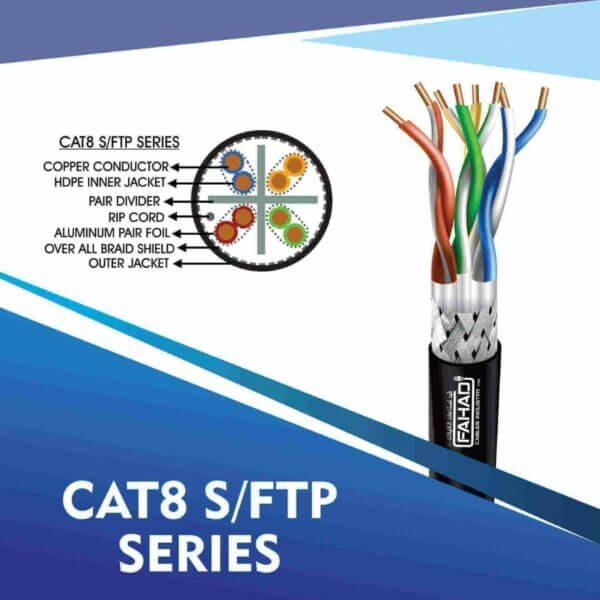

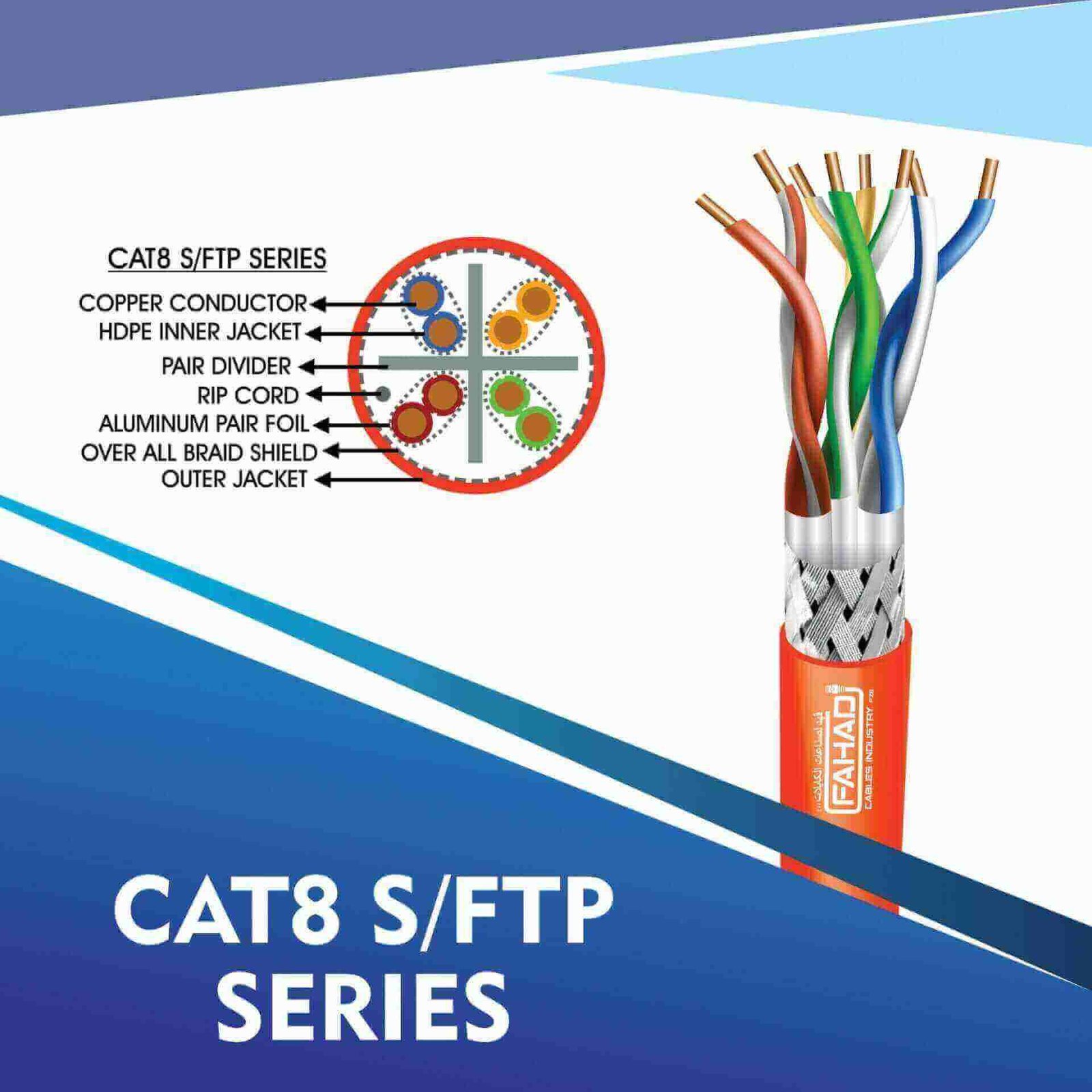

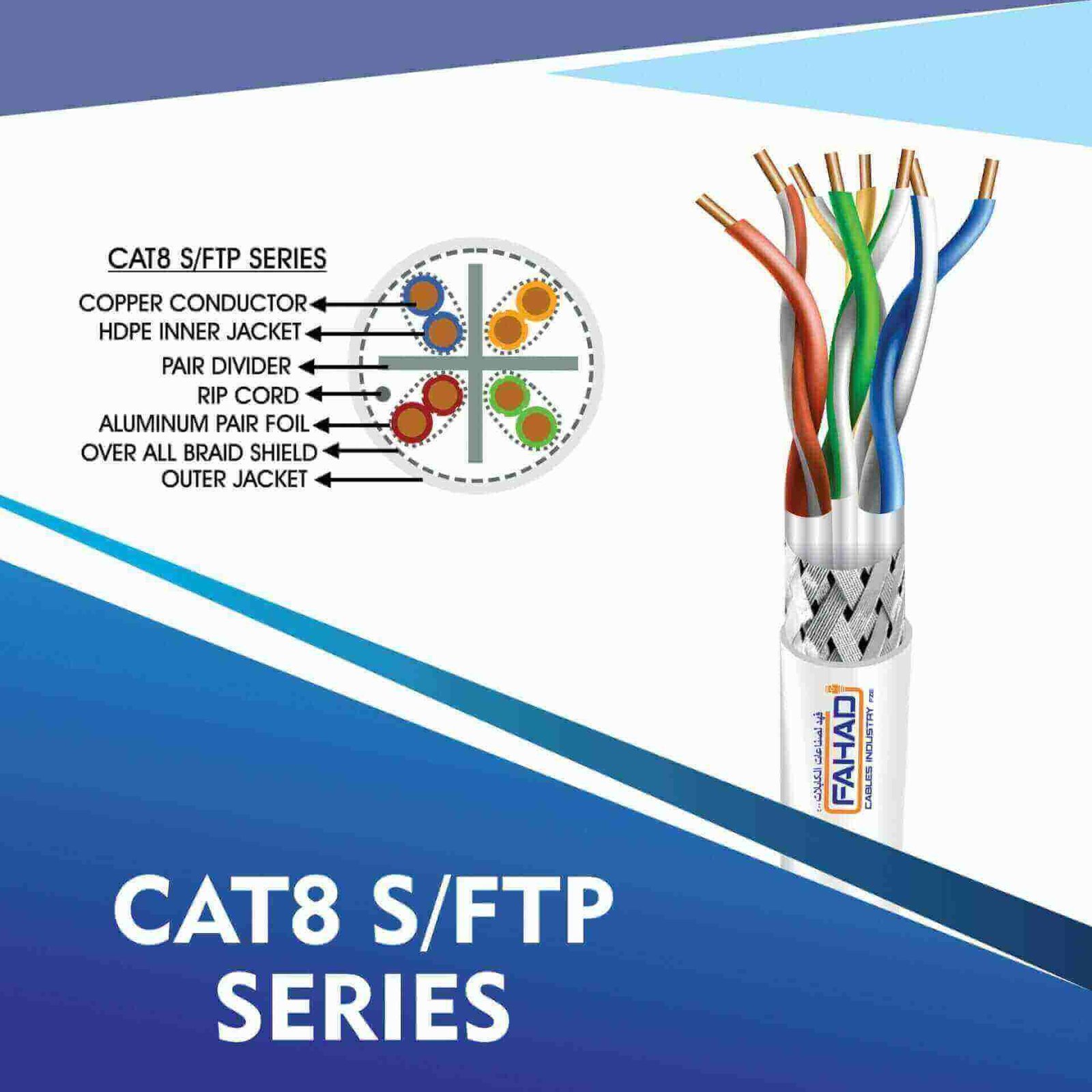

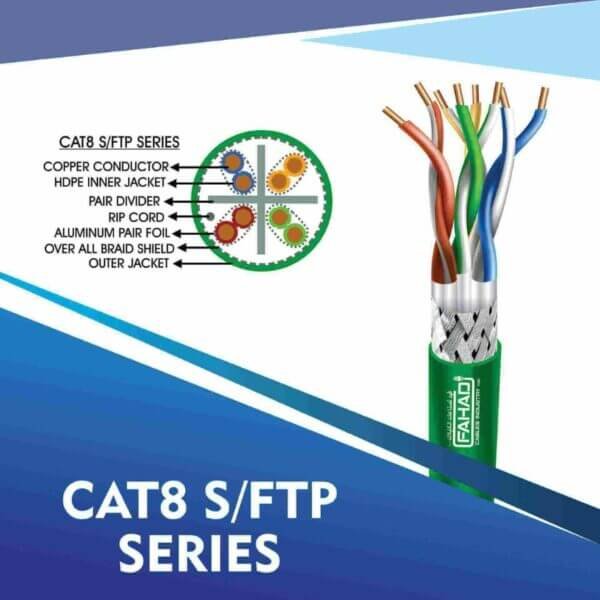

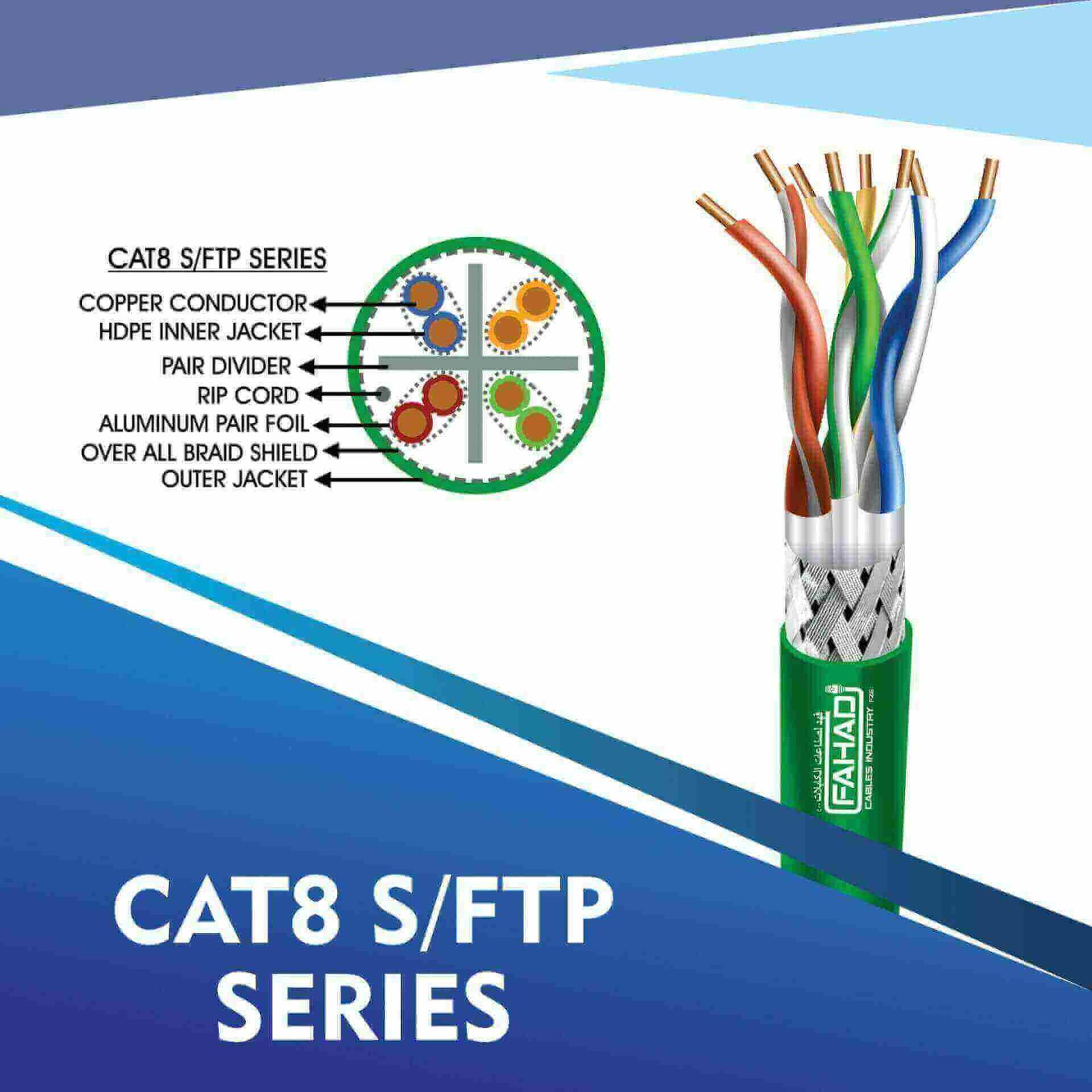

Overall Coverage: Braided Shield + aluminum Foil Polyester Tape
Drain wire: copper conductor
Outer Jacket: PVC/LSZH
Standard Jacket Color: Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow/Aqua
Standard Surface Marking: Includes fci P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8-12 xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: 23AWG 4PAIR CAT8 S/FTP CABLE PVC 305M
